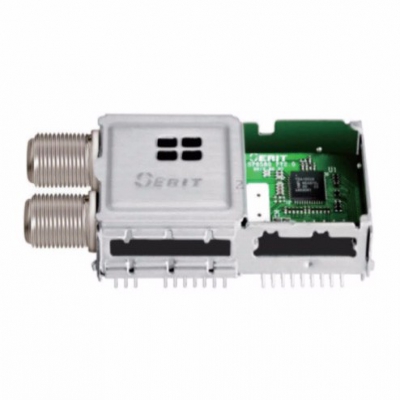

Model：FTT-5336 /SP805

Features:

Frequency range:43~1002MHz

Sensitivity:-84dBuV- 10dBuV (ATSC 15Db, SNR)

               +112dBuv~+30dBuv (64QAM-J.83 annex B)

               +112dBuv~+37dBuv (256QAM-J.83 annex B)

Input impedance: 75ohm

IF Bandwidth: 6/7/8MHz

LOW IF or IF output: 4~8MHz, 44MHz/36MHz QAM (ANNEX B)

3.3V, 250Ma, 1.2V, 280mA

IIC bus interface

Parallel and serial data
