Product

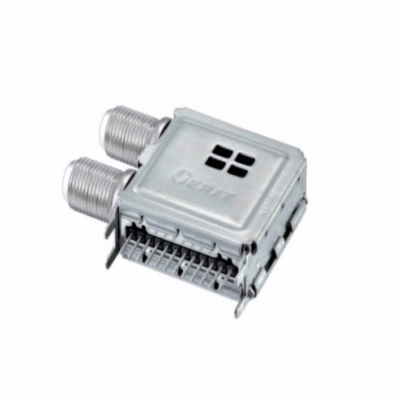

SP7710/SP7760/SP710/SP760/SP720W/SP702/SP707/SP770/SP76

FULL-NIM

Application:SP7710/SP7760/SP710/SP760/SP720W/SP702/SP707/SP770/SP76

  • 详细信息
  • 下载

Models: SP7710/SP7760/SP710/SP760/SP720W/SP702/SP707/SP770/SP76

Features：

   Frequency range: 950-2150MHz

     Symbol rate: 1-45msps (QPSK&8PSK)

     Input impedance: 75ohm

     Input range: -65~ -25dBm

     IIC bus interface

     Parallel and serial data



Main Products:

Model Name

Chipset solution

Remark

Chassis

SP7710

ST chip solution:STV6111B

WITH LNA

VERTICAL/HORIZONTAL

SP7760

ST chip solution:STV6111B

WITH LNA

VERTICAL/HORIZONTAL

SP710

ST chip solution:STV6110A

WITH LNA

VERTICAL/HORIZONTAL

SP760

ST chip solution:STV6110A

WITH LNA

VERTICAL/HORIZONTAL

SP720W

AIROHA chip solution:AV2012

WITH LNA

VERTICAL/HORIZONTAL

SP702

AIROHA chip solution:AV2012

NO LNA

VERTICAL/HORIZONTAL

SP707

AIROHA chip solution:AV2012

NO LNA

VERTICAL/HORIZONTAL

SP770

AIROHA chip solution:AV2012

NO LNA

VERTICAL/HORIZONTAL

SP76

RDA chip solution:RDA5815S

NO LNA

VERTICAL/HORIZONTAL
